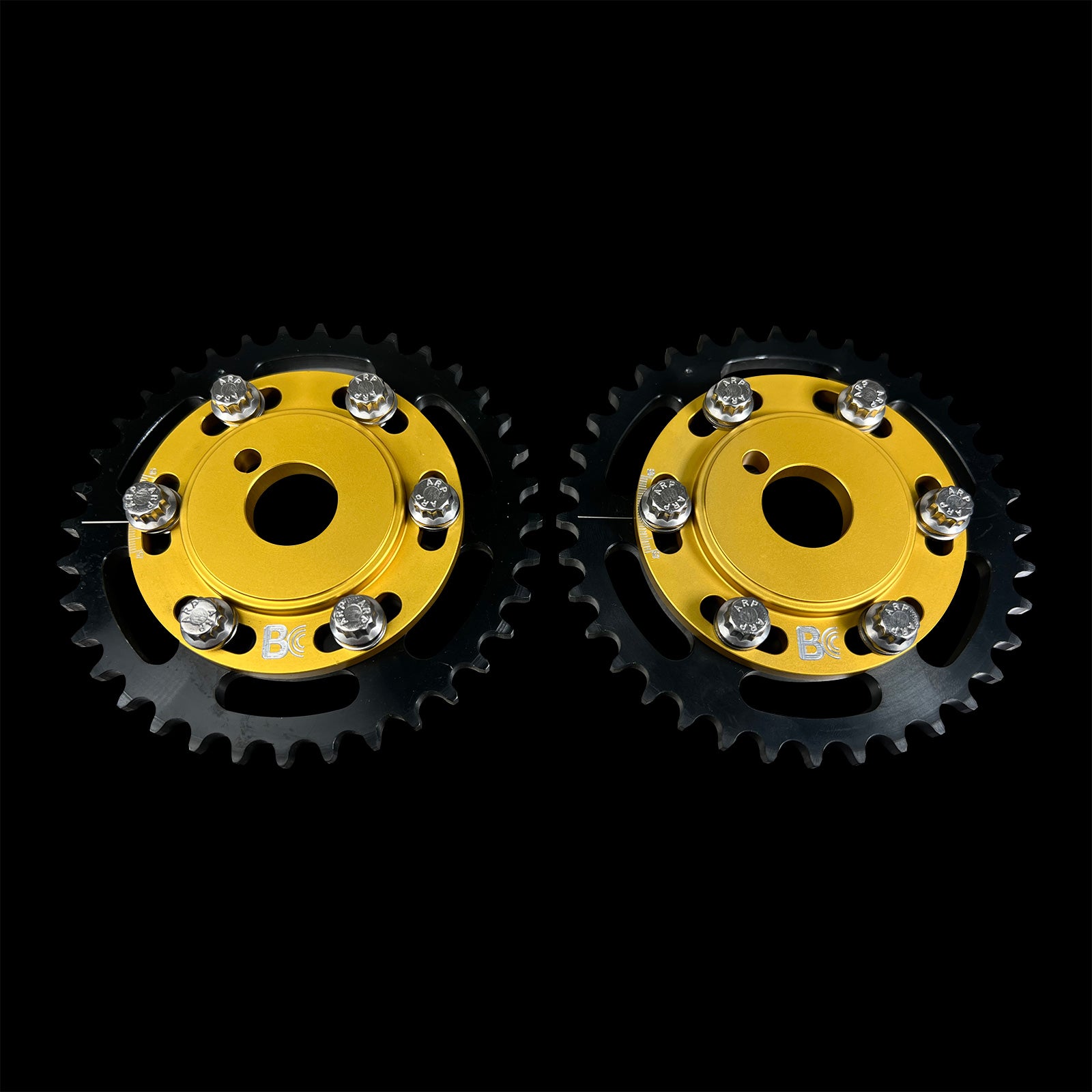

BC8820 – Nissan SR20DE(T) Adjustable Cam Gears

In the realm of high-output four-cylinder performance, the Nissan SR20DE and SR20DET engines stand as iconic testaments to robust engineering and tunability. Achieving optimal power delivery, however, requires precise control over the engine’s most fundamental process: the valve event. Forced induction, aggressive camshaft profiles, and altered compression ratios all shift the engine’s volumetric efficiency window, demanding a corresponding adjustment to cam timing that static factory gears cannot provide. The BC8820 Adjustable Cam Gears from Brian Crower are the definitive solution for the SR20 platform, engineered from 6061-T6 billet aluminum to deliver uncompromising durability and micrometer-precise adjustability. This component is not an accessory but a critical tuning tool, enabling the master technician to dial in overlap, advance, or retard to extract maximum horsepower, improve torque curves, and ensure engine safety under extreme conditions. By allowing infinite adjustment within a 40-degree range, these cam gears transform a static engine management parameter into a dynamic variable, essential for anyone serious about optimizing NA response or harnessing the full potential of a turbocharged build.

Engineering & Material Superiority

Constructed from a solid block of aerospace-grade 6061-T6 aluminum, the BC8820 cam gears represent a significant leap in material science over stock cast components. The T6 temper designation indicates a solution heat-treated and artificially aged state, yielding an optimal balance of ultimate tensile strength (over 45,000 psi) and machinability. This billet construction eliminates the porosity and structural inconsistencies inherent in cast parts, providing a homogeneous grain structure that resists shear forces and fatigue under high-RPM harmonic stress. Each gear is CNC-machined to tolerances within 0.0005″, ensuring perfect concentricity and a flawless interface with the camshaft snout. The anodized finish is not merely cosmetic; it provides a hardened surface layer that resists corrosion and wear from timing belt contact, ensuring long-term dimensional stability. The design incorporates a robust, multi-bolt clamping system that secures the gear to the camshaft without relying on a fragile factory pin, eliminating the risk of slippage or shearing under load—a critical failure point when using aggressive cam profiles.

Precision Timing Adjustment Mechanism

The core functionality of the BC8820 lies in its meticulous adjustment system. Each gear features a slotted design that allows the outer, toothed ring to rotate independently of the inner hub that attaches to the camshaft. This rotation is controlled by three grade-8 socket head cap screws acting upon precision-machined thrust surfaces. The adjustment scale is laser-etched for permanence and clarity, with positive and negative degree markings for advance and retard. Unlike cheaper offerings with vague or coarse adjustment, the Brian Crower design allows for repeatable, fine adjustments of less than 0.5 degrees, a level of precision necessary for mapping the edge of an engine’s performance envelope. This system allows a tuner to methodically alter the cam timing to move the torque peak up or down the RPM band, optimize scavenging for top-end power, or reduce overlap to improve low-end driveability and boost response in turbo applications.

Performance Benefits & Tuning Applications

Installing the BC8820 Adjustable Cam Gears unlocks a new dimension of engine calibration. They are an indispensable tool for correcting the installed centerline of aftermarket camshafts, compensating for manufacturing tolerances in both the cams and the block to ensure the cam performs exactly as designed. Beyond correction, they enable active optimization.

• Maximize Volumetric Efficiency: Fine-tune valve events to match intake and exhaust port flow characteristics, filling the cylinders more completely.
• Shape the Power Band: Advancing cam timing typically increases low-end and mid-range torque, while retarding shifts power production higher in the RPM range.
• Optimize Forced Induction: Reduce overlap to prevent exhaust contamination of the intake charge, control boost dilution, and improve spool characteristics.
• Correct for Supporting Modifications: Account for changes in dynamic compression from head milling, altered rod ratios, or changes in fuel octane.
• Enhance Engine Safety: Prevent piston-to-valve interference in high-compression or stroker applications by slightly retarding the exhaust cam.
• Data-Driven Tuning: Enable iterative dyno or track-side testing to find the exact timing configuration for a specific setup, weather condition, or racing class.

Vehicle Fitment & Installation Notes

The BC8820 kit is engineered specifically for the Nissan SR20 engine family. Correct fitment is paramount for function and safety.

Primary Application: Nissan SR20DE and SR20DET (Turbo) dual overhead cam (DOHC) engines.
Key Vehicle Models:
– Nissan Silvia/200SX (S13, S14, S15) with SR20DET
– Nissan 180SX (RPS13) with SR20DET
– Nissan Bluebird (U12) with SR20DE(T)
– Nissan Pintara (U12) with SR20DE
– Nissan Serena Vanette (C23) with SR20DE

Critical Installation Protocol: Installation requires partial disassembly of the front timing assembly. The factory timing marks must be used as a baseline reference. After installing the gears loosely, a dial indicator and degree wheel must be used to establish the true top dead center (TDC) and map the actual camshaft lobe positions. Adjustment should only be made with the timing belt tension properly set. Final torque values for the clamping hardware must be adhered to precisely, and the use of thread-locking compound is mandatory. Always verify piston-to-valve clearance with new timing settings, especially when using high-lift camshafts. For a deeper technical dive into camshaft degreeing theory and practice, refer to this authoritative resource on camshaft degreeing theory and practice.

Technical Specifications
